Wind Chime Linear Mechanical Switches
HIFI Smooth Feel • Factory Lubed • Rich Mahjong Sound
Designed for enthusiasts who value sound, smoothness, and consistency, Wind Chime Linear Switches deliver a calm, refined typing experience with a clean HIFI sound profile. Each keystroke feels soft, controlled, and fluid—perfect for long typing sessions, gaming, and premium custom keyboard builds.
With a carefully tuned linear structure and high-quality factory lubrication, Wind Chime switches produce a thick, rich, and soothing mahjong-style sound that remains stable and consistent across every key.
✓ Key Features
- Linear Switch Design — Smooth travel with no tactile bump
- HIFI Clean Sound Profile — Calm, soft, and rich keystrokes
- Factory-Lubed — Ready to use out of the box
- Extended Spring Structure — Stable, controlled bottom-out
- 5-Pin Design — Secure mounting and long lifespan
- Hot-Swappable Compatible — Easy installation, no soldering
🎧 Sound & Typing Feel
Wind Chime switches are engineered for a soft HIFI acoustic with a smooth, light press and early bottom-out. The sound is clean and rounded—never harsh—making them ideal for quiet environments and sound-focused builds.
- Mahjong-style soft and thick sound
- Fast trigger with early bottom-out
- Excellent consistency across all switches

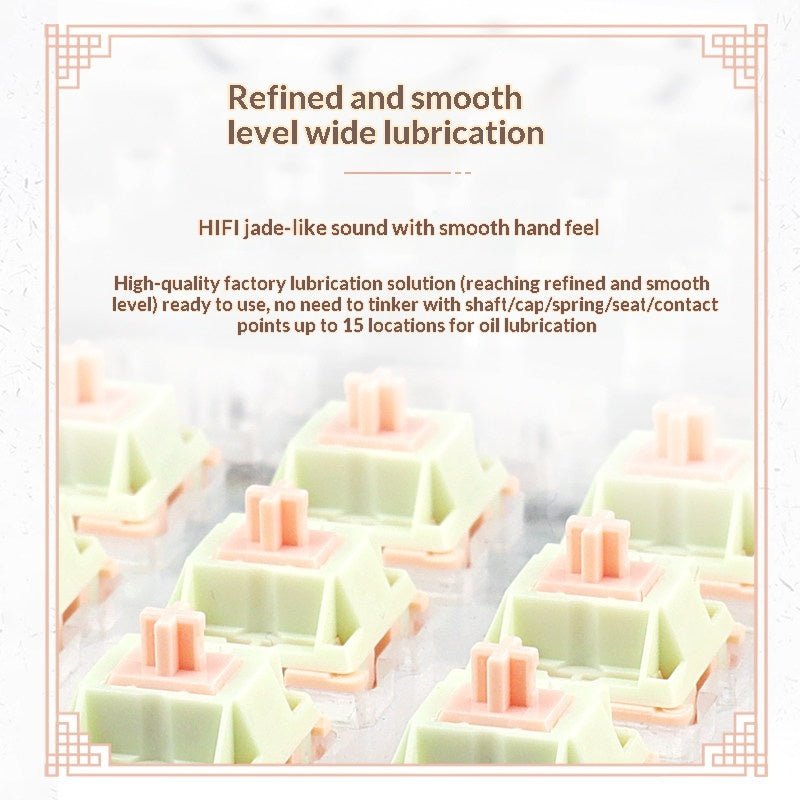

🧴 Factory Lubrication
Each switch is professionally factory-lubed across up to 15 key contact points, including the stem, spring, and housing. This reduces friction, helps minimize spring noise, and ensures a refined, premium feel with no additional tuning required.

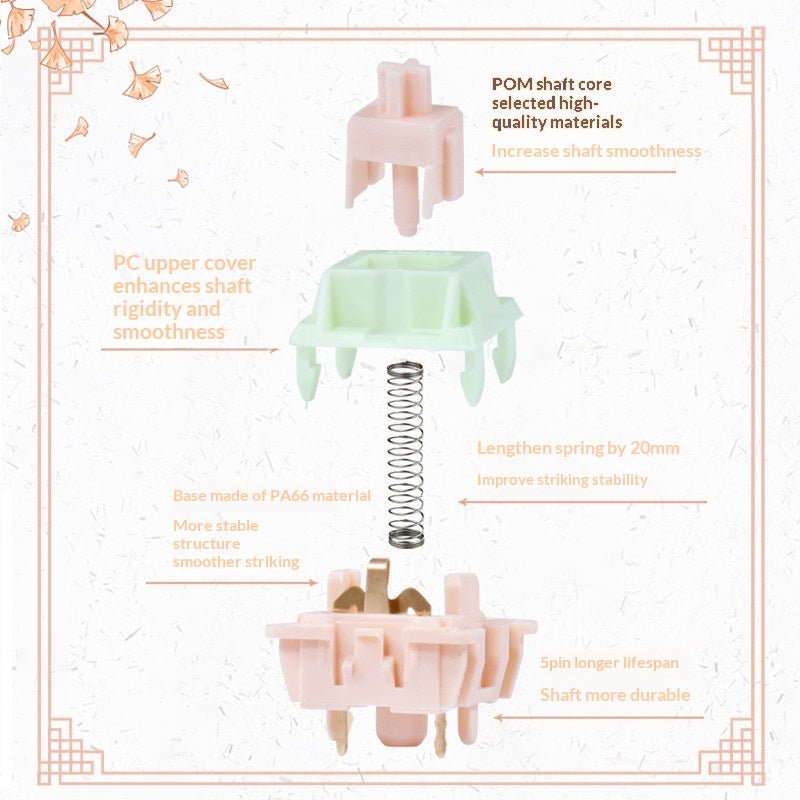

🧩 Internal Structure & Materials
- POM Stem — Ultra-smooth travel and durability
- PC Upper Housing — Enhanced rigidity and smoothness
- PA66 Bottom Housing — Stable structure and consistent sound
- 20mm Extended Spring — Improved keystroke stability

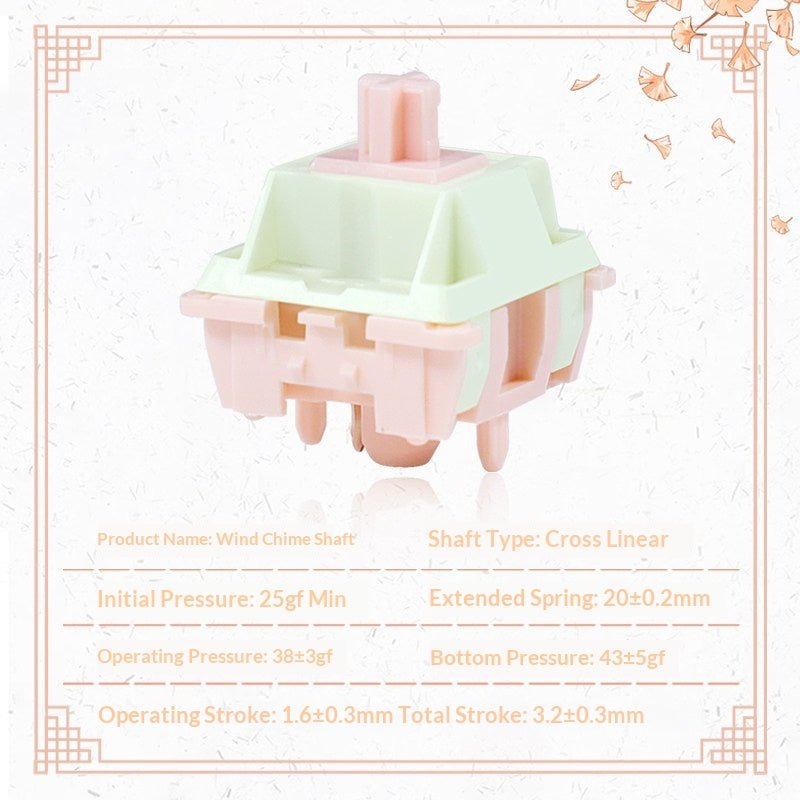

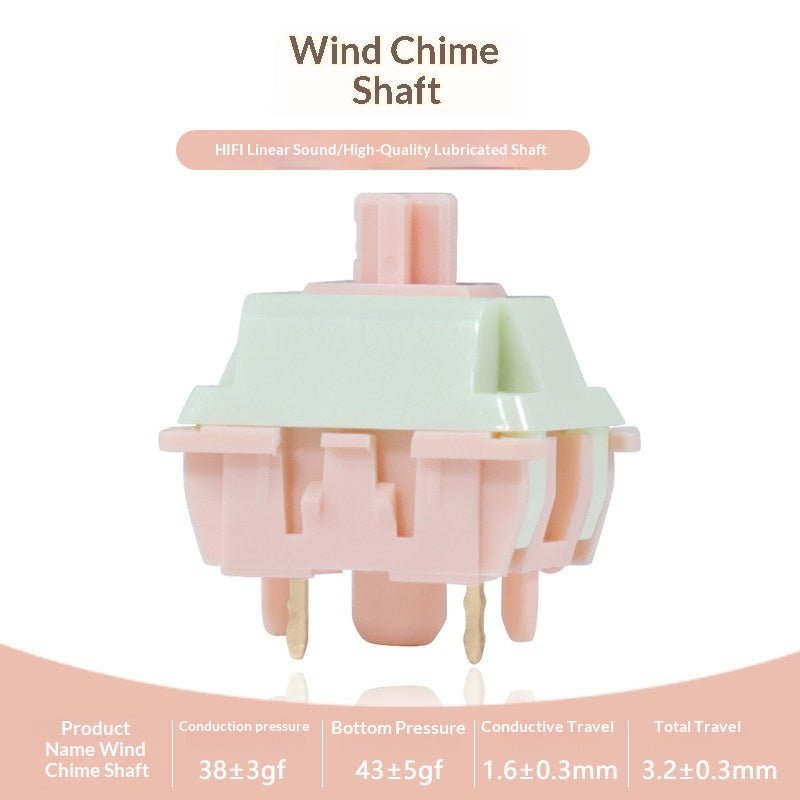

📋 Technical Specifications
| Switch Type | Linear (Cross Stem) |
|---|---|
| Initial Force | 25gf (min) |
| Operating Force | 38 ± 3gf |
| Bottom-Out Force | 43 ± 5gf |
| Pre-Travel | 1.6 ± 0.3mm |
| Total Travel | 3.2 ± 0.3mm |
| Spring Length | 20 ± 0.2mm (Extended) |
| Pins | 5-Pin |
| Lubed | Yes (Factory Lubed) |
⌨️ Compatibility
- Compatible with MX-style mechanical keyboards
- Works with hot-swap and soldered PCBs
- Fits most custom and prebuilt keyboards
📦 What’s Included
- Wind Chime Linear Mechanical Switches
- Quantity depends on selected pack size
❓ FAQ
What does “mahjong sound” mean?
Are these switches factory lubed?
Will they work with my hot-swap keyboard?
Are they compatible with low-profile or membrane keyboards?
Do I need to re-lube them?
🖼️Images
Calm. Smooth. Refined.
Built for those who appreciate a soft HIFI sound, silky smooth travel, and a premium factory-lubed linear typing experience.
